All Deliveries made within 24 Hours (Business Hours) post receipt of order.
Exclusive Deal @ Mahajan Electronics
Just Here
Standard Installation & 3 metres piping Free
Standard Installation & 3 metres piping Free
Exclusive offer-
Standard Installation Free Only At Mahajan Electronics
Buy additional 4 years Comprehensive Warranty @ Rs-6990/-. for details please call us at 9710000251 /9310000492

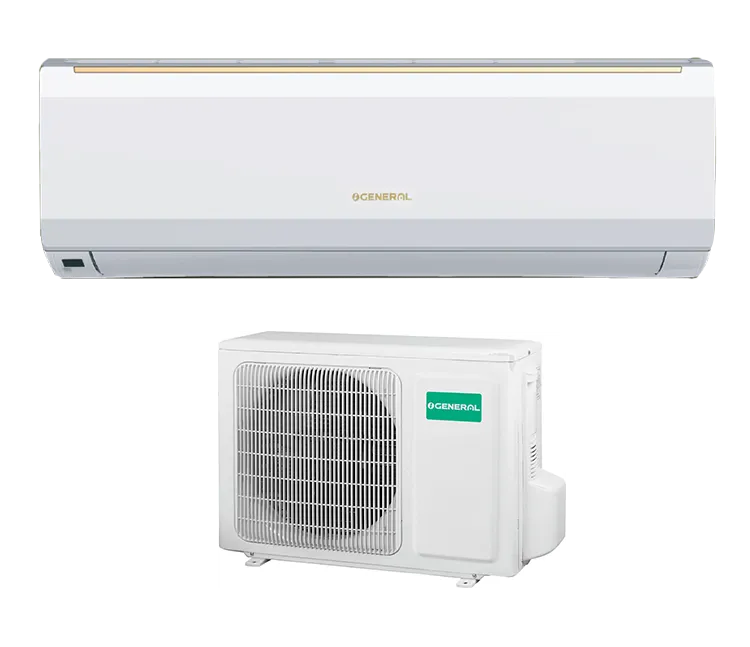

Bring home a OGENERAL AC with a 4 year comprehensive product warranty, it covers all the functional parts of the product & 2 Service Per Year .
- Energy Rating 3 Star
- Capacity: 1 Ton
- Inverter Split Type
- Blue Fin Condenser
- Compact Design
- Ambient Operating Range
- 1 year on product and 5 year only compressor warranty
| Country Of Origin - P.R.C |
| Power source | Phase | Single-phase | |
|---|---|---|---|
| Voltage | 220-240 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling | 3.6 kW | |
| Input Power | Cooling | 1.010 kW | |
| EER | Cooling | 3.56 W/W | |
| Max. Operating Current | Cooling | 7.5 A | |
| Moisture Removal | 1.4 l/h | ||
| Sound Pressure Level | Indoor (Cooling) | High | 42 dB(A) |
| Middle | 38 dB(A) | ||
| Low | 35 dB(A) | ||
| Quiet | 28 dB(A) | ||
| Sound Pressure Level | Outdoor (Cooling) | High | 48 dB(A) |
| Air Flow Rate | Indoor (Cooling) | High | 660 m³/h |
| Outdoor (Cooling) | High | 1800 m³/h | |
| Net Dimensions Indoor |
Height | 289 mm | |
| Width | 845 mm | ||
| Depth | 209 mm | ||
| Net Dimensions Outdoor |
Height | 540 mm | |
| Width | 848 mm | ||
| Depth | 320 mm | ||
| Net Weight | Indoor | 11.0 kg | |
| Outdoor | 30 kg | ||
| Connection Pipe Diameter | Liquid | φ6.35 mm | |
| Gas | φ12.7 mm | ||
| Max Pipe Length | 20 m | ||
| Max Height Difference | 10 m | ||
| Operation Range | Cooling | 18 to 48 °CDB | |
| Refrigerant | Type | R32 | |
| Charge | 640 g | ||
Conditions Apply (UEP)
